| Gamintojo simbolis |
TL-SG5412F |
| Produkto pavadinimas |

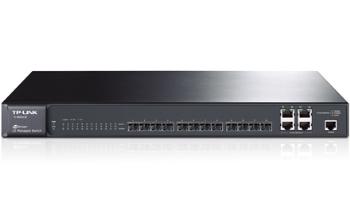

TP-Link TL-SG5412F 12-Port Gigabit SFP L2 Managed Switch with 4 Combo 1000Base-T |
| Gamintojas |
TP-Link |
| Produkto klasė |
SWITCH - tinklo komutatorius (valdomas) |
| LAN tinklo architektūra |
GigabitEthernet |
| SmartSwitch (WEB Managed) |
Taip |
| COMBO GEth (RJ45)/MiniGBIC (SFP) portų skaičius |
4 vnt. |
| MiniGBIC (SFP) lizdų skaičius |
12 vnt. |
| Komunikacijos portai |
Konsolės portas |
| Valdymas, stebėjimas ir konfigūracija |
- GUI - Graphical User Interface
- CLI - Command Line Interface
- Telnet
- SNMPv1 - Simple Network Management Protocol ver. 1
- SNMPv2 - Simple Network Management Protocol ver. 2
- SNMPv3 - Simple Network Management Protocol ver. 3
- RMON - Remote Monitoring
- RMON II - Remote Monitoring ver. 2
- SNTP – Simple Network Time Protocol
- NDP - Neighbor Discovery Protocol
- TFTP - Trivial File Transfer Protocol
- Syslog - Security Issues in Network Event Logging
|
| Autentiškumo ir patekimo kontrolės protokolai |
- IEEE 802.1x - Network Login (MAC-based Access Control)
- IEEE 802.1x - Network Login (Port-based Access Control)
- RADIUS
- ACL based on MAC
- ACL based on IP and protocol type
- ACL based on TCP/UDP port numbers
- ACL based on 802.1p protocol
- ACL based on Diffserv (DSCP)
- ACL based on VLAN
- SSL v.2 - Secure Sockets Layer ver. 2
- SSL v.3 - Secure Sockets Layer ver. 3
- TLS v.1 - Transport Layer Security ver. 1
- SSH v.1 - Secure Shall ver. 1
- SSH v.2 - Secure Shall ver. 2
|
| Palaikomi routing protokolai |
Static Routing |
| Palaikomi protokolai ir standartai |
- IEEE 802.3i
- IEEE 802.3u - 100BaseTX
- IEEE 802.3u - 100BaseFX
- IEEE 802.3ab - 1000BaseT
- IEEE 802.3z - 1000BaseSX/LX
- IEEE 802.3ad - Link Aggregation Control
- IEEE 802.3x - Flow Control
- IEEE 802.1p - Priority
- IEEE 802.1Q - Virtual LANs
- IEEE 802.1Q-in-Q - VLAN Tag
- IEEE 802.1D - Spanning Tree
- IEEE 802.1s - Multiple Spanning Tree
- IEEE 802.1w - Rapid Convergence Spanning Tree
- Auto MDI/MDI-X
- Half/full duplex
- HTTPS - Hypertext Transfer Protocol Secure
- DHCP - Dynamic Host Configuration Protocol
- ARP - Address Resolution Protocol
- IGMP - Internet Group Management Protocol
- GARP - Generic Attribute Registration Protocol
- GVRP - Group VLAN Registration Protocol
- LLDP-MED - Link Layer Discovery Protocol - Media Endpoint Discovery
- QoS - Quality of Service
|
| MAC adresų lentos dydis |
8000 |
| Perjungimo algoritmas |
store-and-forward |
| Vidinės magistralės greitis |
24 Gb/s |
| Pralaidumas |
23.8 mpps |
| Perjungimo sluoksnis |
2 |
| Jungimo į krūvą galimybė |
Taip |
| Korpuso tipas |
1U Rack |
| Standartinė įranga |
- Maitinimo kabelis
- Instaliavimo instrukcija
- CD su programine įranga
- 19" rack montavimo rinkinys
|
| Papildomos funkcijos |
- Apsauga nuo DoS (Denial of Service) atakų
- Port mirroring
|
| Plotis |
440 mm |
| Aukštis |
44 mm |
| Gylis |
260 mm |
| Spalva |
Juoda |
