Ubiquiti NanoStation M5 5GHz AirMax, 802.11a/n, 16 dBi Antenna, 27 dBm
Ubiquiti NanoStation M5 5GHz AirMax, 802.11a/n, 16 dBi Antenna, 27 dBm
Ubiquiti NanoStation M5 5GHz AirMax, 802.11a/n, 16 dBi Antenna, 27 dBm
Ubiquiti NanoStation M5 5GHz AirMax, 802.11a/n, 16 dBi Antenna, 27 dBm
Ubiquiti NanoStation M5 5GHz AirMax, 802.11a/n, 16 dBi Antenna, 27 dBm

Ubiquiti NanoStation M5 5GHz AirMax, 802.11a/n, 16 dBi Antenna, 27 dBm

by UBIQUITI
€0,00
Features:
Category NanoStation M Series
Supplier ABCData
Gamintojo simbolis NSM5
Produkto pavadinimas Ubiquiti NanoStation M5 5GHz AirMax, 802.11a/n, 16 dBi Antenna, 27 dBm
Gamintojas Ubiquiti Networks
Produkto klasė Wireless LAN įrenginys
LAN tinklo architektūra FastEthernet
Įrenginio tipas
  • Prieigos taškas
  • Station
Paskirtis Wireless LAN

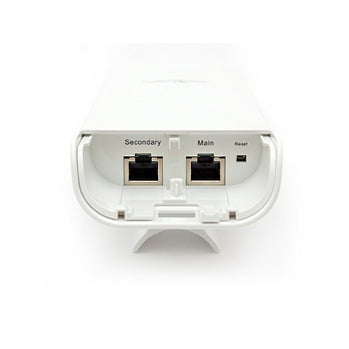

LAN portas 2x 10/100BaseTX (RJ45) Passive PoE (24V)
Išorinės antenos jungties tipas N/A
Integruotos antenos galia 16 dBi
Maksimali 802.11a siųstuvo galia 27 dBm
Maksimali 802.11n siųstuvo galia 27 dBm
Šifravimas
  • WEP - Wired Equivalent Privacy
  • WPA - Wi-Fi Protected Access
  • WPA (TKIP z IEEE 802.1x)
  • WPA (PSK) - Wi-Fi Protected Access (Pre-Shared Keys)
  • WPA (EAP) - Wi-Fi Protected Access (Extensible Authentication Protocol)
  • WPA2 (AES) - Advanced Encryption Standard (CCMP protocol)
  • WPA2 (EAP) - Wi-Fi Protected Access 2 (Extensible Authentication Protocol)
  • WPA2 (PSK) - Wi-Fi Protected Access 2 (Pre-Shared Keys)
Prieinami perdavimo greičiai 6.5 - 300 Mbps (MCS0-MCS15, HT 10/20/40) 802.11n (5 GHz 2x2) Mbit/s Mb/s
Darbo režimas
  • Prieigos taškas
  • Access Point WDS
  • Access Point Bridge/Router
  • PtP / PtmP Bridge/Router
  • Kartotuvas
  • Station
  • Station Bridge/Router
  • Station WDS
Dažnis 5.470 - 5.825 GHz
Palaikomi protokolai ir standartai
  • IEEE 802.11a - Wireless LAN 54Mbps, 5GHz
  • IEEE 802.11n - Wireless LAN 150Mbps, 5GHz
  • Static wireless Access Control List
  • Layer 2 User Isolation
  • Transmit Power Control Support
  • Dynamic ACK Timeout
  • IEEE 802.11e Quality of Service (Voice over WiFi IP, Streaming Multimedia,..)
  • IEEE 802.3 bridging
  • NAT - Network Address Translation
  • Router Mode - Static IP Routing
  • DMZ - Demilitarized Zone
  • Port Forwarding
  • DNS proxy
  • DHCP Server - Dynamic Host Configuration Protocol Server
  • DHCP Client - Dynamic Host Configuration Protocol Client
  • PPPoE - Point-to-Point Protocol over Ethernet
  • NTP - Network Time Protocol
  • Traffic Shaping
  • VLAN / 802.1q pass-through
  • PPTP, Ipsec pass-through

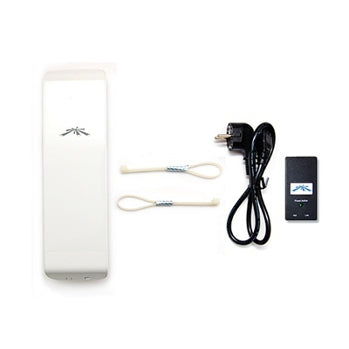

Standartinė įranga PoE maitinimo šaltinis
Plotis 80 mm
Aukštis 294 mm
Gylis 31 mm
Neto svoris 0.4 kg
Papildoma informacija Firmware Tools: Ping watch dog, Antenna Alignment Tool, Ping, Traceroute.
